MS-SDR PULSAR Div. + Do-E6 Make-Up Systems
Ultimate performance setting new standards baking industry’s bun makeup systems, with our new technology.

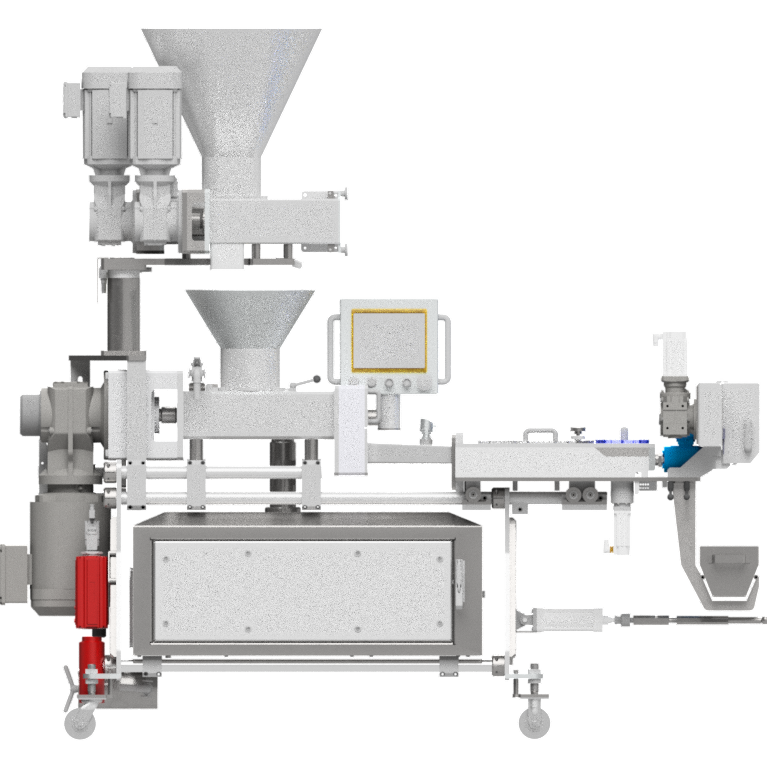

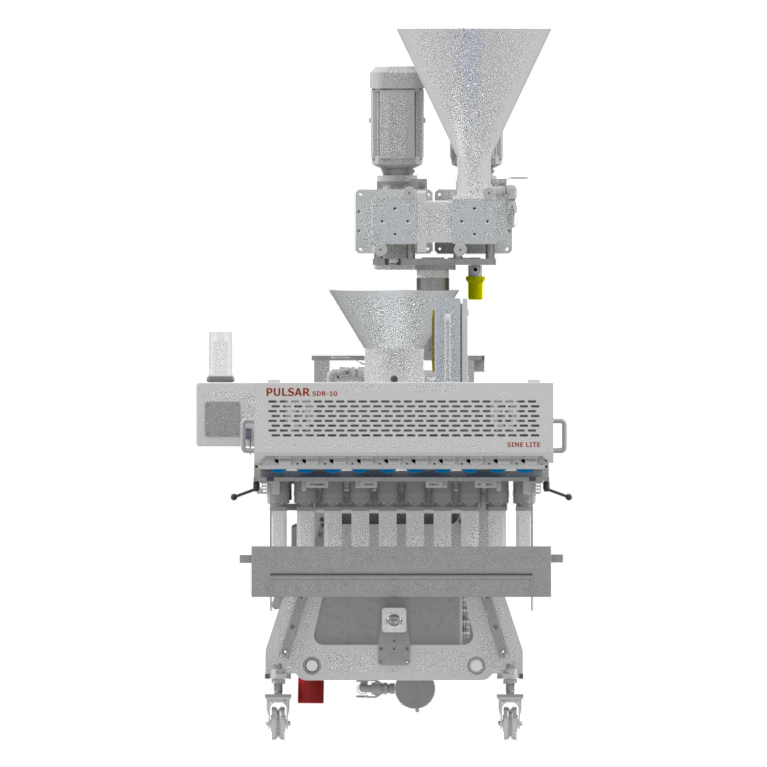

Ultimate PULSAR Series MS-SDR + Do-E6 Bun Makeup Systems
Specifications
LOW MAINTENANCE COMPONENTS: Sine Lite’s PULSAR Makeup Systems are designed for simple operation, maintenance, and complete sanitation, easy access for deep cleaning, superior Engineering ULTRA-OPEN design of The Ultimate MS-SDR PULSAR Bun Dividers, are also designed as WASHDOWN by default, built as IP 56.
SPEEDS: Up to and over 150/cycles/min. (4″ Buns).
FEATURES: The Ultimate MS-SDR PULSAR Div + Do-E6 dividing technology, offers unmatched scaling accuracy, virtually no human interventions are required, designed for easy product change over, Sine Lite’s Bun-Roll Makeup Systems, process a wide range of moist absorptions of soft or stiff dough mixes.
THE IMPOSSIBLE BUN DIVIDER: US Patent Pending, Ultimate MS-SDR PULSAR Multiple Gear-Servo Sine-Disk-Rotor, metering-pump-Segments dough divider, cutting Knife Gear-Servo driven, (Optional) Sine Lite’s Swivel all Stainless Steel enclosure A/B 10″ Color HMI.
DIVIDER DOUGH PUMP SYSTEM: Integrated with a variable pitch large 6″ Twin-Auger SEW Gear-Motor driven, Dough-Feed System.
ULTIMATE PULSAR DIVIDER CONTROLS: all Stainless Steel enclosures are build-in as an integral system, with Ethernet communication with Main Makeup-Control PLC.
EMULSIFIER: Sine Lite’s Do-E6 ID Tunnels (Dough Emulsifier) (Dough Conditioner), integrated with: A 6-IN Auger, as a dough-pump system, and a 6-IN double blade Emulsifier, each driven by a SEW integrated Gear-Motor.
Ultimate MS-SDR PULSAR Bun Dough Dividers built as IP 56 WASHDOWN, frames all Stainless Steel Modular construction.
ROUNDER BED: Rounder-LONG-Bed, Frames all Stainless Steel construction. Rounder-LONG-Bed with self rounder-belt tracking “V” roller.
ROUNDER BARS: Sine Lite’s SD (Slotted-Dimples rounding surfaces) UHMW LONG-Rounder bar.
TRANSFER ROLLER: Rounder Belt dough Transfer-Roller, variable speed AC VFD drive.
ZIG-ZAG BOARD: Zig-Zag board integrated with electric variable-speed Vibrators.
PROOFER TOWER: Tray-Proofer-Tower, Frames bolt-on, access hinged doors, all Stainless Steel construction.
Tray-Proofer Tower Main drive Gear-Servo Drive.
ZIG-ZAG ROTARY-GATE: Zig-Zag UHMW Rotary-Gate Gear-Servo drive, Construction.
PROOFER-TRAYS: Trays welded, all Stainless Steel construction.
INTERMEDIATE PROOFER (IP): Tray Proofer Intermediate (IP), frames are all bolt-on, access doors, all Stainless Steel construction.
All Stainless Steel Construction
SHEET-ROLLERS, MOULDER, PANNING FRAMES: Sheet-Rollers-Drive-Boxes, Moulder -Belt, Panning, support frames all Stainless Steel construction.
IP-DAMP-BOARD: IP-Damp Board Stainless Steel, with UHMW hinged dough guides.
SHEET-ROLLERS ROTARY-GATES: Stainless Steel-guided UHMW-Roller-Gates, are slide-adjustable side-to-side, Gear-Servo driven.
SHEET-ROLLERS: Grooved sheet roller, all stainless Steel construction, adjustable Sheet-Roller UHMW or TEF-Sleeved all Stainless Steel construction.
All Stainless Steel Construction
MOULDER BELT: Moulder Belt Frame, Belt Drive-Idler-Rollers, Moulder Belt Under-Catch Flour-Dust collector Pans, all Stainless Steel construction.
HOT-DOG PRESSURE-BOARDS: Hot-Dog Pressure UHMW-boards, height-adjustment UHMW-hinge.
MOULDER BELT DOUGH SLIDE: Moulder belt Dough-Slide and Finger-extension, easy to remove (drop-in-place) all Stainless Steel construction.
HOT-DOG GATE: Hot-Dog-Gate. UHMW-Gate Gear-Servo Driven, all Stainless Steel construction.
All Stainless Steel Construction
MAGNETIC BUN PAN INDEXER: Magnetic Bun pan indexer, mag chain, Gear-Motor VFD driven, all stainless steel construction.
PANNING CONVEYOR: Panning Conveyor, Pan-Guides manual adjustment, all Side-Frames Stainless-Steel construction.
PANN-10 VACUUM HOOD: Panning Conveyor, Vacuum hood, hinged up-down, air jets, all stainless steel construction.
Stainless Steel Side-Frames Alum.
Vector-MAG-PAN-Vibrator: Superior In-Line Electronic hot-dog and bun-pan vibrator, settles hot-dog and bun dough packets at the center of pan pockets.
CONFIGURATIONS: Left-Right, 4, 6, 8, 10-Lanes..
